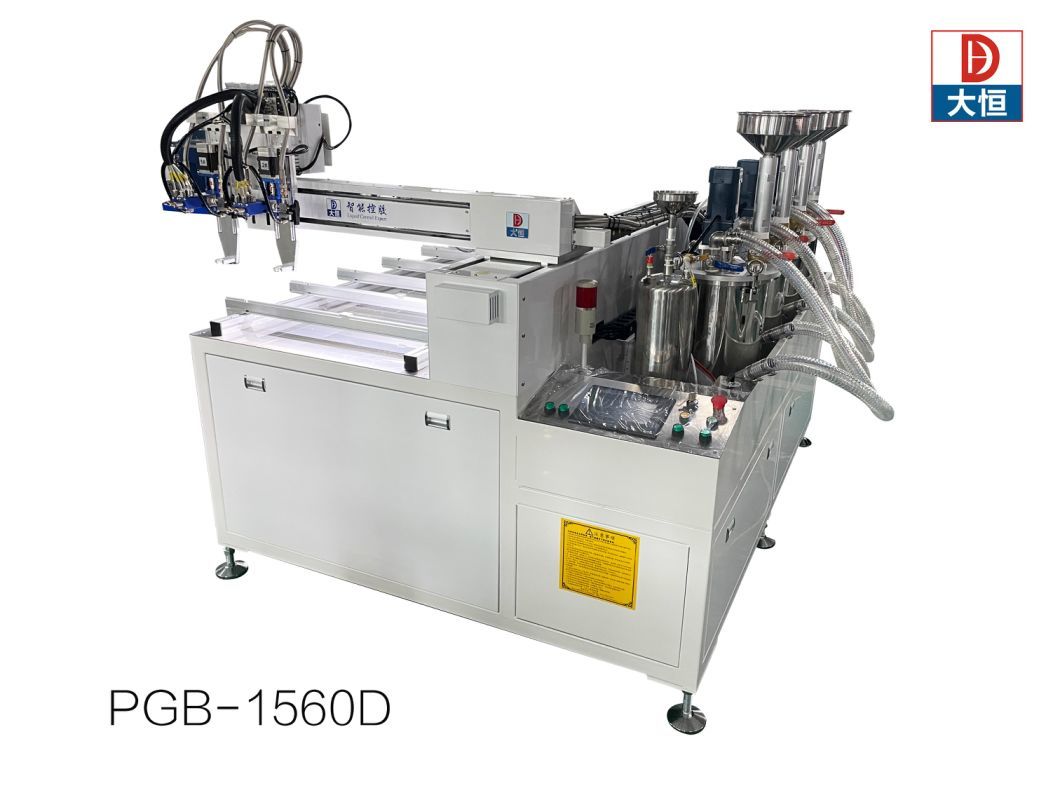

Automatic glue dispensing machine PGB1560D
Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB1560D suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.
Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.
Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.
| Model & Type | PGB-1560D Full Auto Gluing Machine Dispenser |
| Certificate | CE, SGS |
| Dimension | 1500x1200x1500mm |
| N.W. | 600kg |
| XYZ Working Area | 1560x550x80mm |
| Flow Speed | 0-150g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
|
Advantages:
1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Features&Functions:
Strong versatility / Multiple configuration / High production capacity / High precision - Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
- Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
- Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
- Vacuum : A &B tank vacuum for degas the bubble inside material .
- Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
Suitable Material Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on . Machine description and working principle Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data. Company Profile
